YNO系列印南PCB電源變壓器

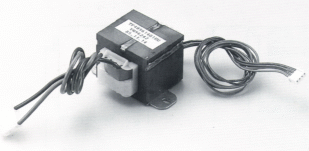

YNO-EI-WIRE Type meet VDE

Feature : ☼ Universal operaion - dual primary. 115 or 230 Vac, 50/60Hz current. ☼ Outputo voltages to available in custom-mode specification. ☼ Choose Input/Output connection to parallel/series. ☼ Available VA size from - 1 to 250VA. ☼ Low profile, split bobbin with top shroud design. ☼ Dual winging secondaries,non-concentrically wound. ☼ High insulation - Hipot of 4000VRMS. ☼ Low primary to secondary coupling - no electrostatic shied required. ☼ Choose 2 hole or 4 hole chassis mount.

	unit: mm

Type	VA	A	B	C	D	E	F	Ø
YNO 28-13	1.0	28.5	26.0	32	13	38	46	3.5-5.5
YNO 35-10	1.5	35.5	30.5	32	10	45	55	3.5-5.5
YNO 35-13	2.0	35.5	30.5	35	13	45	55	3.5-5.5
YNO 41-16	4.0	41.5	34.0	38	16	52	60	3.5-5.5
YNO 41-20	5.0	41.5	34.0	40	20	52	60	3.5-5.5
YNO 41-40	10	41.5	34.0	60	40	52	60	4.5-6.5
YNO 48-18	8.0	48.5	41.0	43	18	63	73	4.5-6.5
YNO 48-20	9.0	48.5	41.0	45	20	63	73	4.5-6.5
YNO 48-25	10	48.5	41.0	48	25	63	73	4.5-6.5
YNO 48-30	17	48.5	41.0	53	30	63	73	4.5-6.5
YNO 48-35	18	48.5	41.0	58	35	63	73	4.5-6.5
YNO 48-40	20	48.5	41.0	65	40	63	73	4.5-6.5
YNO 57-25	18	57.5	48.5	52	25	70	84	4.5-6.5
YNO 57-30	20	57.5	48.5	57	30	70	84	4.5-6.5
YNO 60-25	25	60.5	51.0	55	25	75	90	4.5-6.5
YNO 60-30	30	60.5	51.0	60	30	75	90	4.5-6.5
YNO 66-25	32	66.5	56.0	60	25	81	92	4.5-6.5
YNO 66-36	40	66.5	56.0	65	36	81	92	4.5-6.5
YNO 76-40	65	76.5	64.5	70	40	90	105	5.0-7.0
YNO 76-45	75	76.5	64.5	75	45	90	105	5.0-7.0
變壓器尺寸依功率大小而定 ; 輸出電壓與變壓器結構依照客戶需求設計與製作
