 高頻變壓器 EPC

Application :
VCR, Duplicator, Audio Device, Electronic Toy, TV, Micro-computer, Communication Control Device,
Printer, Lighting Electrical Appliance, Terminal Equipment, etc
Transformer EPC Feature :
◆Operating Temperature Range：-10℃～+95℃
◆Storage Temperature：-15℃～38℃
◆Switching Frequency：15KHz~300KHz
◆Withstand Voltage: Between Primary and Secondary 3500VAC one minute 3500VAC　1min
　 　　　                       Between Primary and Magnetic Core 2500VAC one minute 2500VAC　1min
　 　　　                       Secondary and Magnetic Core 1500VAC　1min
◆Insulation Resistance: Between Primary and Secondary 500VDC 100MΩ min
◆Temperature Resistance Grade E(120℃)、B(130℃)

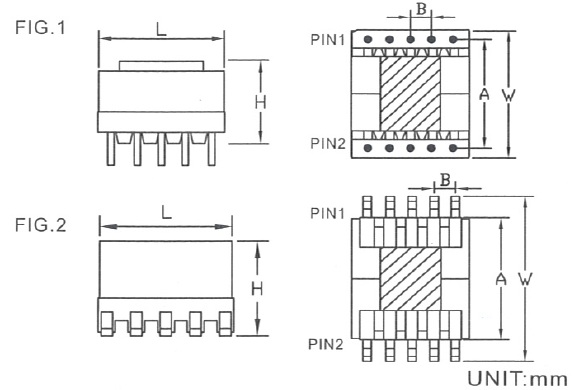

Tpye
 L
 H
 W
 A
 B
 Pin1
 Pin2 Fig.
   EPC13
 13.3
 8.0
 13.3
 10.5
 2.5
 5
 5
 1
   EPC 19
 19.5
 12.5
 19.5
 16.3
 3.8 / 2.5
 5
 6
 1
   EPC 25
 25.3
 16.0
 25.3
 20.0
 5 / 3.5
 5
 6
 1
   EPC13SMD
 14.5
 7.5
 21.0
 14.0
 2.5
 5
 5
 2
   EPC19SMD
 21.0
 10.0
 24.0
 19.0
 2.5
 6
 6
 2
   EPC25SMD
 25.0
 11.5
 30.0
 25.0
 3.8
 6
 6
 2
Available in custom-mode models and specification
