 EP - High Frequency Transformers in Power Supply Application

Application :
VCR, Duplicator, Audio Device, Electronic Toy, TV, Micro-computer, Communication Control Device,
Printer, Lighting Electrical Appliance, Terminal Equipment, etc
Transformer EP Feature :
◆Operating Temperature Range：-10℃～+95℃
◆Storage Temperature：-15℃～38℃
◆Switching Frequency：15KHz~300KHz
◆Withstand Voltage: Between Primary and Secondary 3500VAC one minute 3500VAC　1min
　 　　　                       Between Primary and Magnetic Core 2500VAC one minute 2500VAC　1min
　 　　　                       Secondary and Magnetic Core 1500VAC　1min
◆Insulation Resistance: Between Primary and Secondary 500VDC 100MΩ min
◆Temperature Resistance Grade E(120℃)、B(130℃)


Tpye
 L
 H
 W
 A
 B
 Pin1

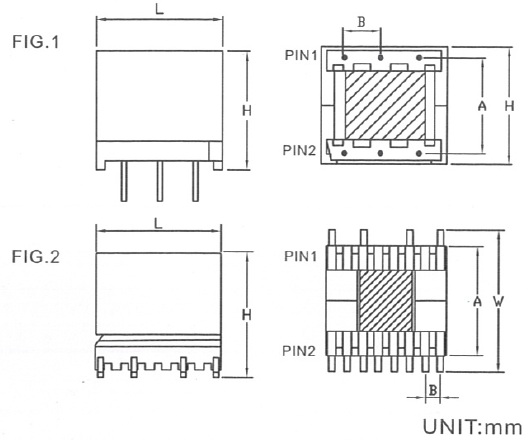

 Pin2 Fig.
   EP 7
 9.0
 10.0
 8.0
 5.0
 2.5
 3
 3
 1
   EP 10
 11.0
 11.0
 11.5
 7.5
 2.5
 4
 4
 1
   EP 13
 13.0
 13.0
 13.5
 10.0
 2.5
 5
 5
 1
   EP 17
 19.0
 16.0
 19.0
 15.0
 5.0
 4
 4
 1
   EP7 SMD
 9.5
 8 / 10
 8.9 / 12.7
 6.7 / 8.6
 2.5
 3 /4
 3 / 4
 2
   EP10 SMD
 11.5
 10.5
 14.6
 10.5
 2.5
 4
 4
 2
   EP13 SMD
 12.8
 11.5
 17.0
 13.0
 2.5
 5
 5
 2
Available in custom-mode models and specification
