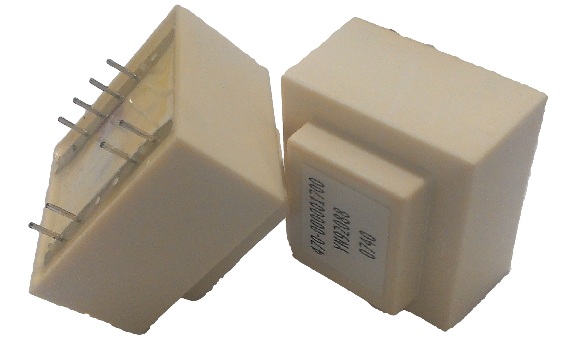

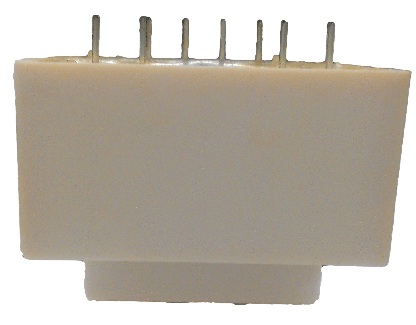

YNQ-EI-PIN Type meet VDE


Feature :
☼  Minimun size at high output.
☼  Self‑extinguishing potting material.
☼  Universal operaion - dual primary. 115 or 230 Vac, 50/60Hz current.
☼  Outputo  voltages to available in custom-mode specification.
☼  Choose Input/Output connection to parallel/series.
☼  Available VA size from - 1.5 to 2VA.
☼  Low profile, split bobbin with top shroud design.
☼  Dual winging secondaries,non-concentrically wound.
☼  High insulation - Hipot of 4000VRMS.
☼  Low primary to secondary coupling - no electrostatic shied required.
☼  P.C. Board mount with industry standard pin spacing.

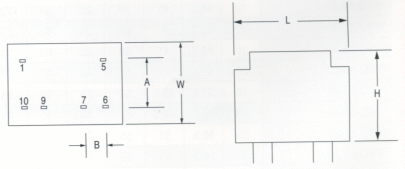

unit: mm

Type VA L W H A B Ø      Pin NO.

  P          S
YNQ 28-15 1.5 32 27 27 21 5 0.8 2 4
YNQ 35-10 2.0 40 38 28 23 5.1 0.8 4 4
Available in custom-mode models and specification
