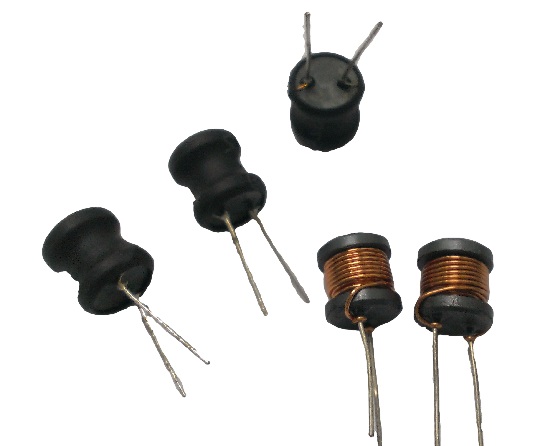

Vertical Fixed  inductor



Application about Vertical Fixed inductor:
VCR, Duplicator, Audio Device, Electronic Toy, TV, Micro-computer, Communication Control Device,
Printer, Lighting Electrical Appliance, Terminal Equipment, etc

 Vertical Fixed  inductor characteristic :
YN  No. inductance L(uH)
 Test frequency
 Direct Current Resistance (£[) Rated Current I(mA)
YN-VF-001
 1 ~ 20000
 1KHz 0.035 ~ 100
 30 ~ 2000
YN-VF-002
 1 ~ 30000
 1KHz
 0.035 ~ 150
 40 ~ 2500
YN-VF-003
 1 ~ 50000
 1KHz
 0.05 ~ 200
 50 ~ 4000
YN-VF-004
 1 ~ 80000
 1KHz
 0.08 ~ 300
 60 ~ 5000
All Vertical Fixed inductor  are available in custom-made models and specification
