Feature :
☼
Universal operaion - dual primary. 115 or 230 Vac, 50/60Hz current.
☼
Outputo voltages to available in custom-mode specification.
☼
Choose Input/Output connection to parallel/series.
☼
Available VA size from - 15 to 75VA.
☼
Low profile, split bobbin with top shroud design.
☼
Dual winging secondaries,non-concentrically wound.
☼
High insulation - Hipot of 4000VRMS.
☼
Low primary to secondary coupling - no electrostatic
shied required.
☼
P.C. Board mount with industry standard pin spacing. |
|
|
|
|
|
|
 |
|

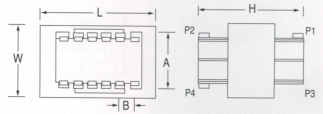

| Type |
VA |
L |
W |
H |
A |
B |
P1 |
P2 |
P3 |
P4 |
| YNJ 57-19 |
15 |
58 |
48.5 |
43.5 |
30.5 |
7.5 |
5 |
5 |
0 |
5 |
| YNJ 57-25 |
20 |
58 |
48.5 |
50.0 |
30.5 |
7.5 |
5 |
5 |
0 |
5 |
| YNJ 66-25 |
30 |
67 |
56.0 |
52.5 |
35.5 |
7.5 |
5 |
5 |
0 |
5 |
| YNJ 66-31 |
40 |
67 |
56.0 |
59.0 |
35.5 |
7.5 |
5 |
5 |
0 |
5 |
| YNJ 76-25 |
40 |
77 |
64.5 |
55.6 |
40.6 |
7.5 |
6 |
6 |
0 |
6 |
| YNJ 76-31 |
55 |
77 |
64.5 |
62.0 |
40.6 |
7.5 |
6 |
6 |
0 |
6 |
| YNJ 86-28 |
60 |
87 |
72.5 |
62.0 |
45.7 |
7.5 |
6 |
6 |
0 |
6 |
| YNJ 96-31 |
75 |
97 |
81.0 |
68.5 |
50.8 |
7.5 |
8 |
8 |
0 |
8 |
| 變壓器尺寸依功率大小而定 ; 輸出電壓與變壓器結構依照客戶需求設計與製作 |
|
