Feature :
☼ Universal operaion - dual primary. 115 or
230 Vac, 50/60Hz current.
☼ Outputo voltages to available in
custom-mode specification.
☼ Choose Input/Output connection to
parallel/series.
☼ Split bobbin construction eliminates the
need for an electrostaic shied.
☼ Combination solder or quick connect
terminals.
☼ Available VA size from - 2.5 to 65VA.
☼ Dual winging
secondaries,non-concentrically wound.
☼ High insulation - Hipot of 2000VRMS.
☼
Low primary to secondary
coupling - no electrostatic shied required.
|
|
|
|
 |
|

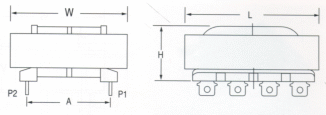

| Type |
VA |
L |
W |
H |
A |
P1 |
P2 |
| YNI 35-13 |
2 |
37 |
31.0 |
30.5 |
24.0 |
4 |
4 |
| YNI 41-17 |
5 |
46 |
35.0 |
33.0 |
26.5 |
4 |
4 |
| YNI 48-21 |
10 |
50 |
42.0 |
38.5 |
29.0 |
4 |
5 |
| YNI 57-26 |
20 |
59 |
49.0 |
44.5 |
33.0 |
5 |
5 |
| YNI 66-26 |
40 |
68 |
58.0 |
47.5 |
37.0 |
5 |
5 |
| YNI 76-32 |
65 |
78 |
65.5 |
57.5 |
42.5 |
5 |
5 |
| 變壓器尺
寸依功率大小而定 ; 輸出電壓與變壓器結構依照客戶需求設計與製作 |
|
