YNH 系列印南插PCB板式電源變壓器

YNH series


Feature : ☼ Universal operaion - dual primary. 115 or 230 Vac, 50/60Hz current. ☼ Outputo voltages to available in custom-mode specification. ☼ Choose Input/Output connection to parallel/series. ☼ Available VA size from - 1.1 to 36VA. ☼ Low profile, split bobbin with top shroud design. ☼ Dual winging secondaries,non-concentrically wound. ☼ High insulation - Hipot of 4000VRMS. ☼ Low primary to secondary coupling - no electrostatic shied required. ☼ P.C. Board mount with industry standard pin spacing.

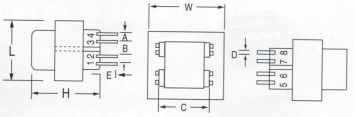

unit: mm

Type	VA	L	W	H	A	B	C	D	E
YNH 35-07	1.1	35.5	30.0	24.0	6.35	6.35	30.5	1	5
YNH 35-14	2.4	35.5	30.0	30.0	6.35	9.00	32.5	1	5
YNH 41-17	6.0	41.5	33.5	33.5	6.35	9.00	32.5	1	5
YNH 48-20	12	48.5	40.5	36.0	7.62	10.16	35.0	1	5
YNH 48-25	15	48.5	40.5	42.0	7.62	10.16	35.0	1	5
YNH 57-17	15	48.5	48.0	36.0	7.62	10.16	40.6	1	5
YNH 57-30	30	57.5	48.0	41.0	7.62	10.16	40.6	1	5
YNH 66-16	36	66.5	55.5	41.0	10.16	10.16	45.7	1	5
變壓器尺寸依功率大小而定 ; 輸出電壓與變壓器結構依照客戶需求設計與製作
