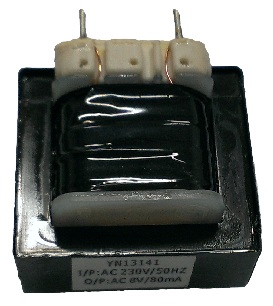

YNE-EI-PIN Type meet VDE


Feature :
  Universal operaion - dual primary. 115 or 230 Vac, 50/60Hz current.
  Outputo  voltages to available in custom-mode specification.
  Choose Input/Output connection to parallel/series.
  Available VA size from - 1 to 18VA.
  Low profile, split bobbin with top shroud design.
  Dual winging secondaries,non-concentrically wound.
☼  High insulation - Hipot of 4000VRMS.
☼  Low primary to secondary coupling - no electrostatic shied required.
  P.C. Board mount with industry standard pin spacing.






unit: mm

Type VA L W H A B B1 Ø Pin NO.

P       S

YNE 28-12 1.0 30 28 27.5 22.0 6.0 - 1.0 3 3
YNE 35-10 1.5 37 29 31.5 23.5 4.6 - 1.0 5 4
YNE 41-17 4.0 43 35 40.5 32.0 5.1 - 1.0 5 5
YNE 41-24 6.0 43 35 48.0 40.0 5.0 7.25 1.0 5 4
YNE 48-28 10 50 42 49.0 40.0 5.0 - 1.0 6 6
YNE 48-44 18 50 42 70.0 61.0 5.0 - 1.0 6 6
YNE 54-25 15 56 47 50.0 40.0 5.0 - 1.0 6 6
變壓器尺寸依功率大小而定 ; 輸出電壓與變壓器結構依照客戶需求設計與製作
