Feature :
☼
Universal operaion - dual primary. 115 or 230 Vac, 50/60Hz current.
☼
Outputo voltages to available in custom-mode specification.
☼
Choose Input/Output connection to parallel/series.
☼
Available VA size from - 1 to 15VA.
☼
Low profile, split bobbin with top shroud design.
☼
Dual winging secondaries,non-concentrically wound.
☼
High insulation - Hipot of 4000VRMS.
☼
Low primary to secondary coupling - no electrostatic
shied required.
☼
P.C. Board mount with industry standard pin spacing. |
|
|
|
|

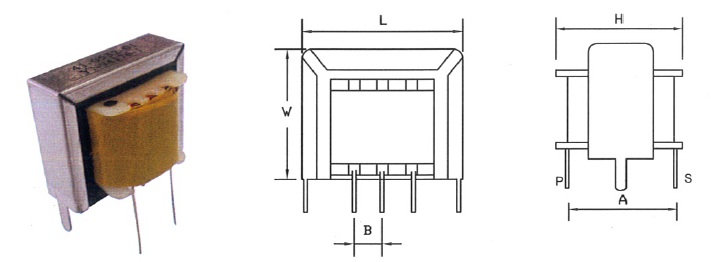

| Type |
VA |
L |
M |
H |
A |
B |
Ø |
Pin NO.
P S
|
| YNC 28-12 |
1 |
30 |
28 |
27.5 |
22 |
6.0 |
7.25 |
3 |
3 |
| YNC 35-10 |
1.5 |
37 |
29 |
31.5 |
23.5 |
4.6 |
5 |
4 |
| YNC 41-17 |
4 |
43 |
35 |
40.5 |
32 |
5.1 |
5 |
5 |
| YNC 41-24 |
6 |
43 |
35 |
48 |
40 |
5 |
5 |
4* |
| YNC 48-28 |
10 |
50 |
42 |
49 |
40 |
5 |
6 |
6 |
| YNC 48-44 |
18 |
50 |
42 |
70 |
61 |
5 |
6 |
6 |
| YNC 54-25 |
15 |
56 |
47 |
50 |
40 |
5 |
6 |
6 |
|
Available in custom-mode models and
specification |
|
