 高頻變壓器 ETD

Application :
VCR, Duplicator, Audio Device, Electronic Toy, TV, Micro-computer, Communication Control Device,
Printer, Lighting Electrical Appliance, Terminal Equipment, etc
Transformer ETD Feature :
◆Operating Temperature Range：-10℃～+95℃
◆Storage Temperature：-15℃～38℃
◆Switching Frequency：15KHz~300KHz
◆Withstand Voltage: Between Primary and Secondary 3500VAC one minute 3500VAC　1min
　 　　　                       Between Primary and Magnetic Core 2500VAC one minute 2500VAC　1min
　 　　　                       Secondary and Magnetic Core 1500VAC　1min
◆Insulation Resistance: Between Primary and Secondary 500VDC 100MΩ min
◆Temperature Resistance Grade E(120℃)、B(130℃)

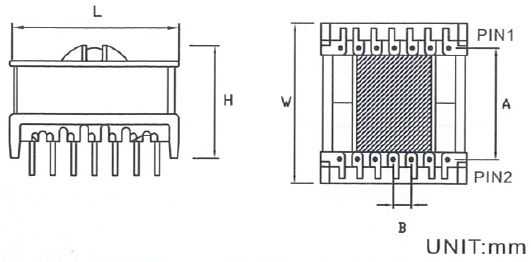

Tpye
 L
 H
 W
 A
 B
 Pin1
 Pin2
   ETD 29
 35.5
 25
 35.3
 26
 5.0
 7
 7
   ETD 34
 39.5
 27
 40.0
 25.5
 5.0
 7
 7
   ETD 39
 44.5
 35.6
 44.0
 30.2
 5.0
 8
 8
   ETD 44
 50.0
 34.5
 52.0
 36
 5.0
 9
 9
   ETD 49
 53.5
 36.5
 57.5
 40.5
 5.0
 10
 10
Available in custom-mode models and specification
