 高頻變壓器 ER / ERL


Application :
VCR, Duplicator, Audio Device, Electronic Toy, TV, Micro-computer, Communication Control Device,
Printer, Lighting Electrical Appliance, Terminal Equipment, etc
Transformer ER/ERL Feature :
◆Operating Temperature Range：-10℃～+95℃
◆Storage Temperature：-15℃～38℃
◆Switching Frequency：15KHz~300KHz
◆Withstand Voltage: Between Primary and Secondary 3500VAC one minute 3500VAC　1min
　 　　　                       Between Primary and Magnetic Core 2500VAC one minute 2500VAC　1min
　 　　　                       Secondary and Magnetic Core 1500VAC　1min
◆Insulation Resistance: Between Primary and Secondary 500VDC 100MΩ min
◆Temperature Resistance Grade E(120℃)、B(130℃)

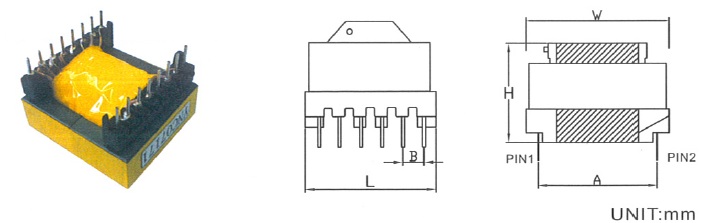

Tpye
 L
 H
 W
 A
 B
 Pin1
 Pin2
   ER 28V
 30.0
 37.0
 28.0
 20.0
 5.0
 6
 6
   ERL28V
 30.0
 38.0
 25.0
 17.5
 5.0
 6
 6
   ER 33V
 35.0
 40.0
 31.5
 25.0
 5.0
 7
 7
   ER 34V
 42.0
 42.0
 32.0
 25.2
 5.0
 8
 8
   ER 35V
 37.0
 44.0
 30.0
 22.4
 5.0
 6
 6
   ER 39V
 43.5
 52.0
 32.0
 25.0
 5.0
 8
 8
   ER 40V
 40.0
 45.0
 30.5
 24.8
 5.0
 6
 6
   ER 4215V
 45.5
 47.0
 32.5
 27.5
 5.0
 9
 9
   ER 4220V
 42.5
 47.5
 37.5
 30.2
 5.0
 7
 7
   ER 44V
 50.0
 47.0
 33.5
 25.0
 7.5
 6
 6
   ER49V
 52.0
 50.0
 36.0
 27.5
 7.5
 6
 6
Available in custom-mode models and specification

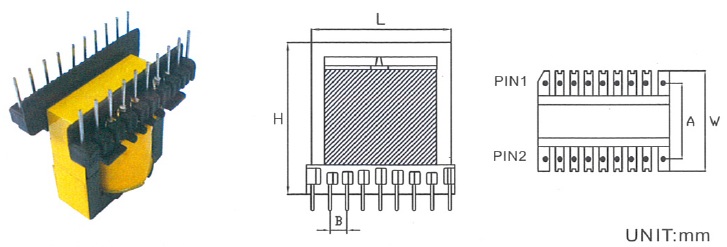

Tpye
 L
 H
 W
 A
 B
 Pin1
 Pin2
   ER 28H
 30.0
 25.0
 37.0
 30.0
 5.0
 6
 6
   ERL 28H
 30.0
 25.5
 37.0
 30.0
 5.0
 6
 6
   ER 35H
 37.0
 28.0
 44.0
 35.0
 5.0
 8
 8
   ER 39H
 42.0
 34.0
 46.0
 35.0
 5.0
 8
 8
   ERL 40H
 40.5
 30.0
 46.0
 35.5
 5.0
 8
 8
   ER4215H
 42.0
 35.0
 44.0
 34.5
 5.0
 7
 7
Available in custom-mode models and specification
