Feature :
☼
Universal operaion - dual primary. 115 or 230 Vac, 50/60Hz current.
☼
Outputo voltages to available in custom-mode specification.
☼
Choose Input/Output connection to parallel/series.
☼
Available VA size from - 1 to 250VA.
☼
Low profile, High reliability.
☼
Dual winging secondaries,non-concentrically wound.
☼
High insulation - Hipot of 4000VRMS.
☼
Low primary to secondary coupling - no electrostatic
shied required.
☼
Choose 2 hole or 4 hole chassis mount.
|
|
|
|
|
 |
|

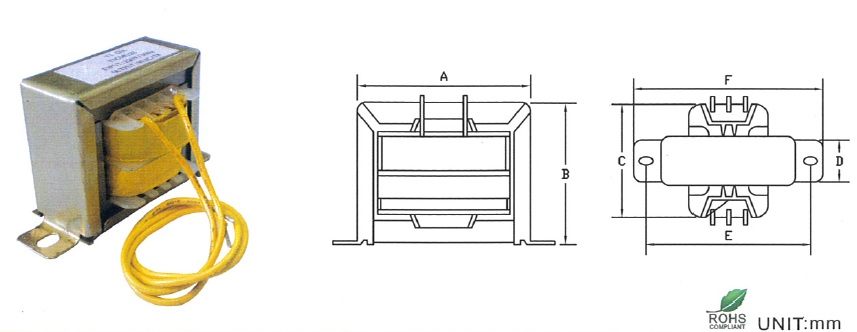

| Type |
VA |
A |
B |
C |
D |
E |
F |
| YNP 28-13 |
1.0 |
29.5
|
32
|
32
|
14.5
|
38
|
46
|
| YNP 35-10 |
1.5 |
36.5
|
32
|
32
|
12
|
45
|
55
|
| YNP 35-13 |
2.0 |
36.5
|
35
|
35
|
14.5
|
45
|
55
|
| YNP 41-16 |
4.0
|
42.5
|
38
|
38
|
18
|
52
|
60
|
| YNP 41-20 |
5.0 |
42.5
|
40
|
40
|
20
|
52
|
60
|
| YNP 48-16 |
6.0
|
50
|
43
|
43
|
18
|
60
|
70
|
| YNP 48-20 |
8.0
|
50
|
45
|
45
|
22
|
60
|
70
|
| YNP 48-25 |
10
|
50
|
48
|
48
|
26.5
|
60
|
70
|
| YNP 57-25 |
18
|
59.5
|
52
|
52
|
26.5
|
70
|
84
|
| YNP 57-30 |
20
|
59.5
|
57
|
57
|
31
|
70
|
84
|
| YNP 66-25 |
25
|
62.5
|
55
|
55
|
27
|
75
|
90
|
| YNP 66-30 |
30
|
62.5
|
60
|
60
|
32
|
75
|
90
|
| YNP 66-36 |
32
|
68.5
|
60
|
60
|
27
|
81
|
92
|
| YNP 76-40 |
40
|
68.5
|
63
|
63
|
38
|
81
|
92
|
| YNP 76-45 |
65
|
78.5
|
70
|
70
|
42
|
90
|
105
|
| YNP 96-50 |
75
|
78.5
|
75
|
75
|
47
|
90
|
105
|
| Available in custom-mode models and
specification |
|
