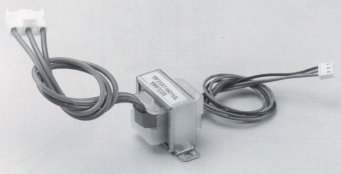

YNM series P.C.Board Mount transformer,

YNM-EI-WIRE Type meet VDE

Feature : ☼ Universal operaion - dual primary. 115 or 230 Vac, 50/60Hz current. ☼ Outputo voltages to available in custom-mode specification. ☼ Choose Input/Output connection to parallel/series. ☼ Available VA size from - 1 to 75VA. ☼ Low profile, split bobbin with top shroud design. ☼ Dual winging secondaries,non-concentrically wound. ☼ High insulation - Hipot of 4000VRMS. ☼ Low primary to secondary coupling - no electrostatic shied required. ☼ Low EMI and EMC.

	unit: mm

Type	VA	A	B	C	D	E	F	Ø
YNM 28-13	1.0	29.5	27.0	32	14.5	38	46	3.5-5.5
YNM 35-10	1.5	36.5	31.5	32	12.0	45	55	3.5-5.5
YNM 35-13	2.0	36.5	31.5	35	14.5	45	55	3.5-5.5
YNM 41-16	4.0	42.5	36.0	38	18.0	52	60	3.5-5.5
YNM 41-20	5.0	42.5	36.0	40	20.0	52	60	3.5-5.5
YNM 48-16	6.0	50.0	43.0	43	18.0	60	70	4.5-6.5
YNM 48-20	8.0	50.0	43.0	45	22.0	60	70	4.5-6.5
YNM 48-25	10	50.0	43.0	48	26.5	60	70	4.5-6.5
YNM 57-25	18	59.5	51.0	52	26.5	70	84	4.5-6.5
YNM 57-30	20	59.5	51.0	57	31.5	70	84	4.5-6.5
YNM 66-25	25	62.5	55.0	55	27.0	75	90	4.5-6.5
YNM 66-30	30	62.5	55.0	60	32.0	75	90	4.5-6.5
YNM 66-35	32	68.5	59.0	60	27.0	81	92	4.5-6.5
YNM 66-36	40	68.5	59.0	63	38.0	81	92	4.5-6.5
YNM 76-40	65	78.5	66.0	70	42.0	90	105	5.0-7.0
YNM 76-45	75	78.5	66.0	75	47.0	90	105	5.0-7.0
Available in custom-mode models and specification
