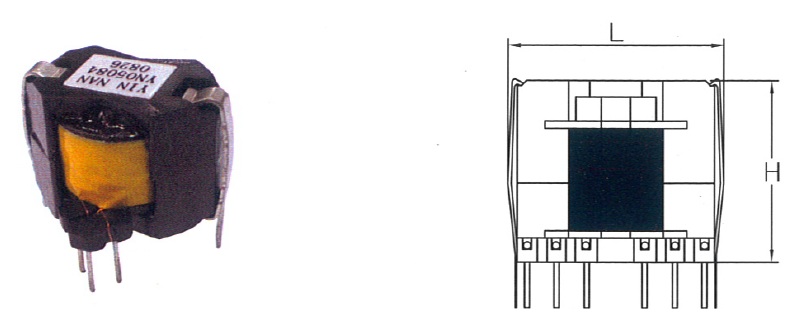

 RM - High Frequency Transformers in Power Supply Application

Application :
VCR, Duplicator, Audio Device, Electronic Toy, TV, Micro-computer, Communication Control Device,
Printer, Lighting Electrical Appliance, Terminal Equipment, etc
Transformer RM Feature :
◆Operating Temperature Range：-10℃～+95℃
◆Storage Temperature：-15℃～38℃
◆Switching Frequency：15KHz~300KHz
◆Withstand Voltage: Between Primary and Secondary 3500VAC one minute 3500VAC　1min
　 　　　                       Between Primary and Magnetic Core 2500VAC one minute 2500VAC　1min
　 　　　                       Secondary and Magnetic Core 1500VAC　1min
◆Insulation Resistance: Between Primary and Secondary 500VDC 100MΩ min
◆Temperature Resistance Grade E(120℃)、B(130℃)

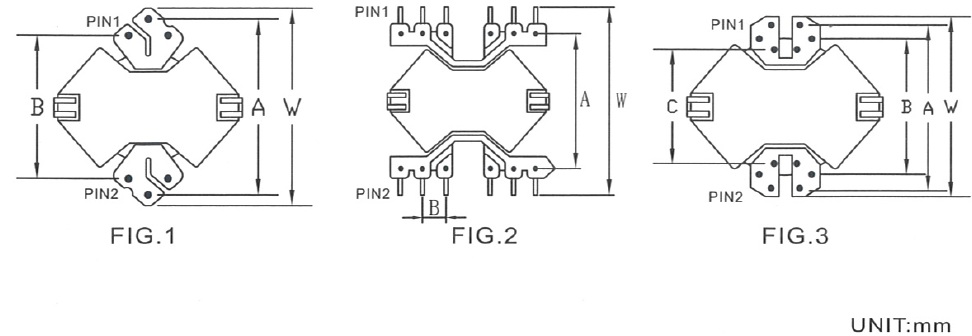

Tpye
 L
 H
 W
 A
 B
 C Pin1
 Pin2 Fig.
   RM4
 12.5
 10.4
 12.8
 10.8
 7.2
3
 3
 1
   RM5
 16.0
 10.4
 16.0
 14.3
 10.7
4/3/2
 4/3/2
 1
   RM6
 20.0
 12.4
 20.3
 18.0
 14.4
3
 3
 1
   RM6-1
 20.0
 12.4
 18.7
 15.3
 3.7
4
 4
 2
   RM8
 24.0
 19.0
 23.2
 20.0
 3.8

6
 6
 2
   RM8-1
 24.0
 19.0
 24.0
 21.7
 18.0
 14.4
 6
 6
 3
   RM10
 28.5
 19.0
 28.3
 25.2
 21.5
 18.0
 6
 6
 3
   RM12
 38.5
 26.0
 38.5
 35.9
 28.7
 21.5
 6
 6
 3
   RM14
 43.0
 30.0
 42.0
 39.5
 32.3
 25.2
 6
 6
 3
Available in custom-mode models and specification
